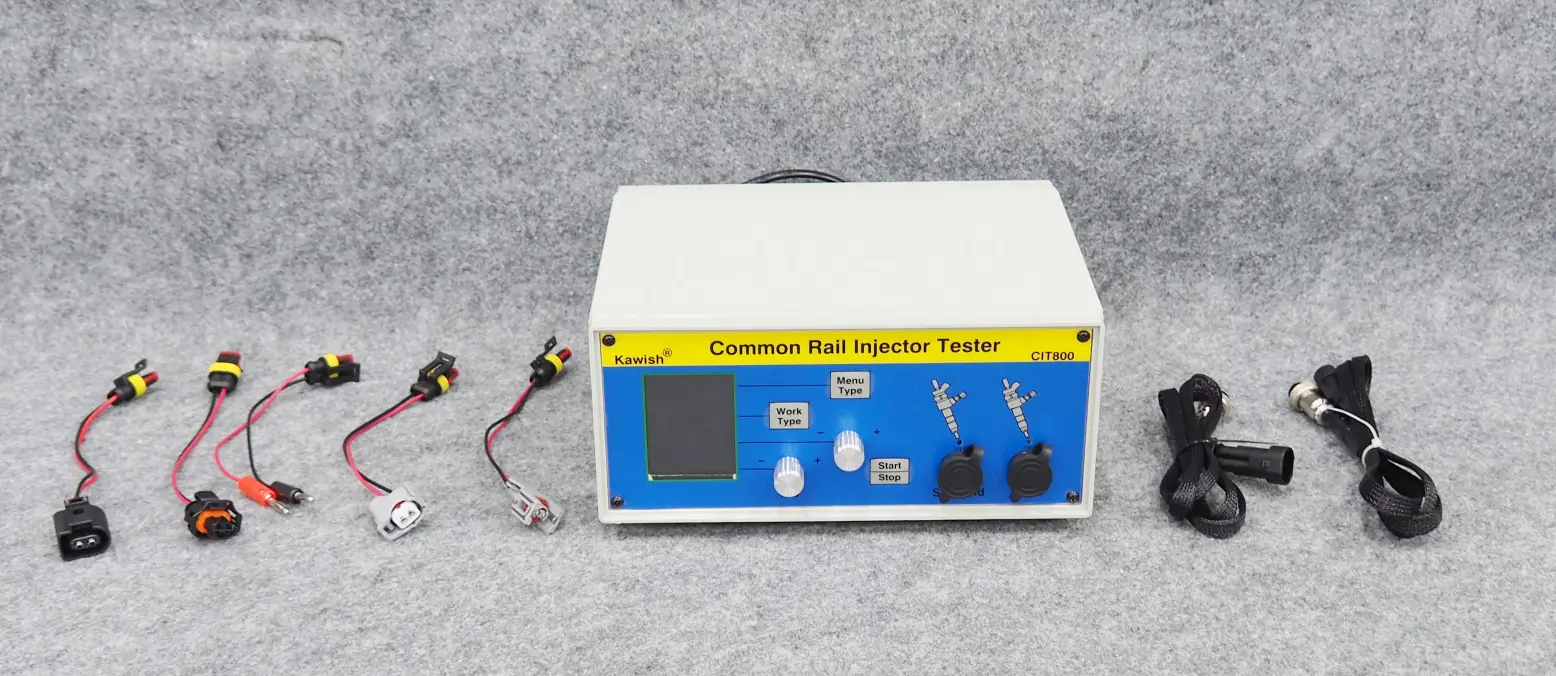

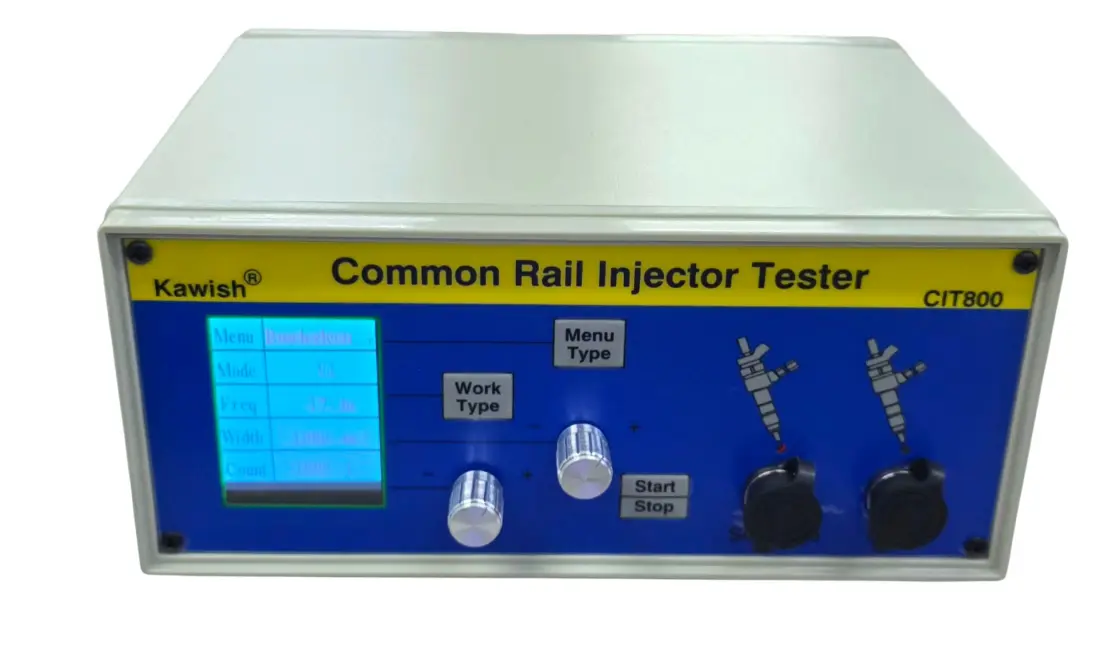

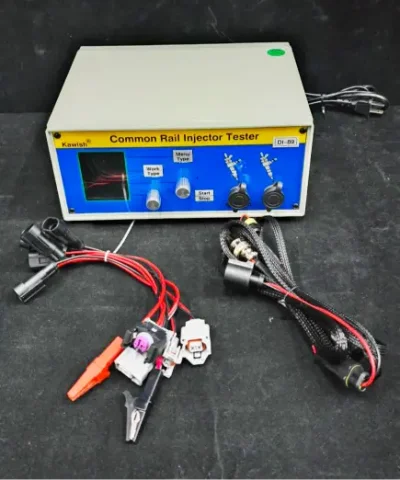

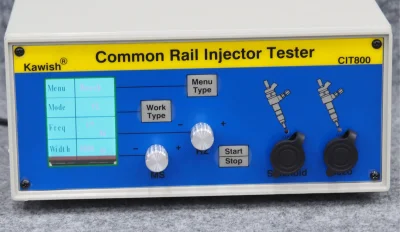

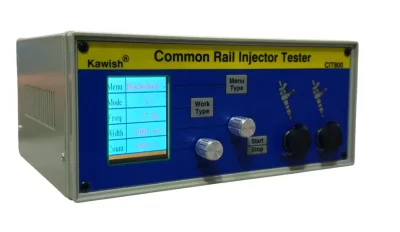

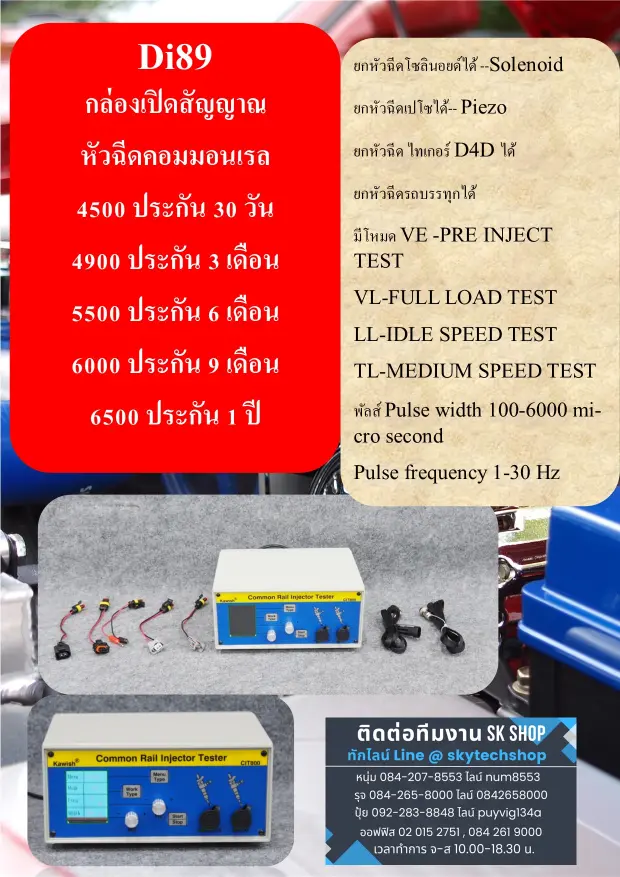

Di89 เครื่องทดสอบหัวฉีด

Technical Parameters:

Produce Model:     Di89

Testing Range:  atomization, pilot, emission and full load condition.

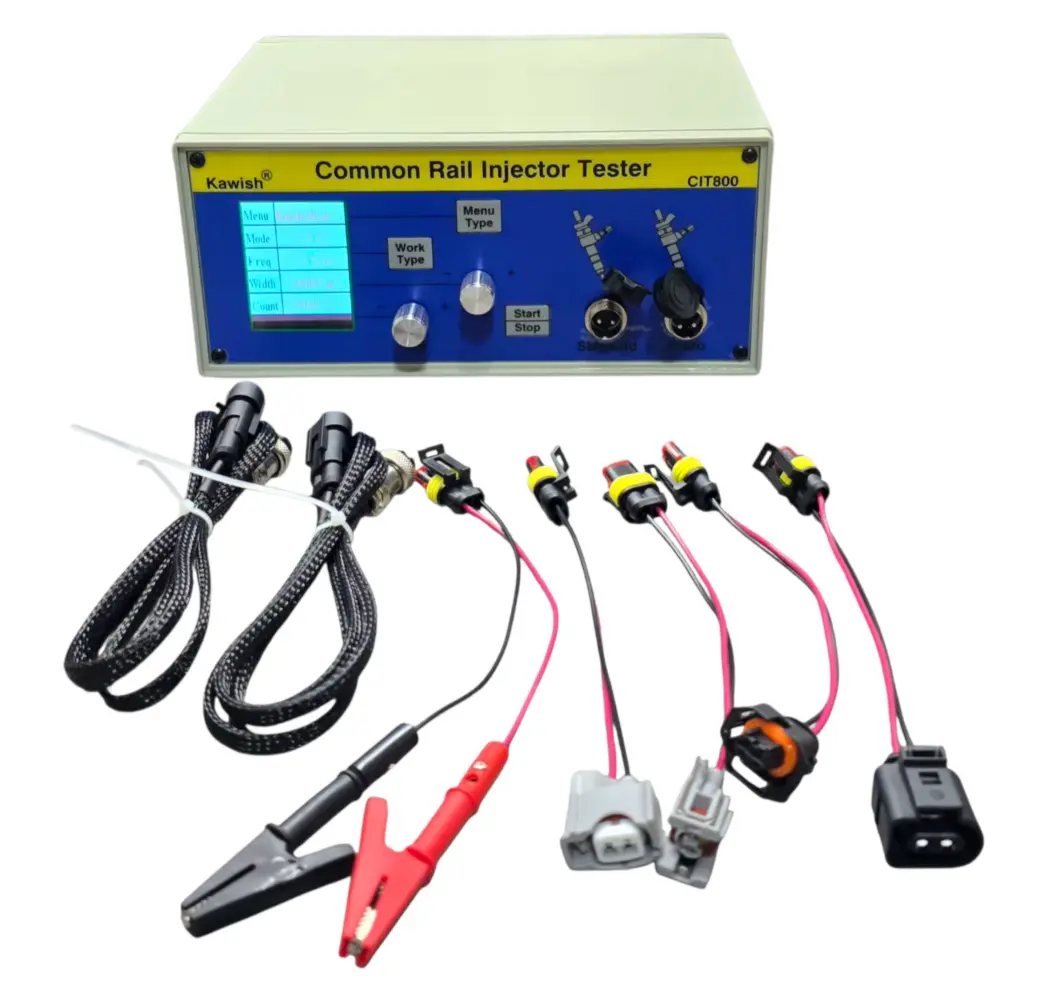

Test Injectors:   for Boscch, for Densso, for Delphii common rail injector,and  Piezo injector

Working Voltage: AC110V-AC220V

Working Temperature:    -30C°--70C°

Size:    110*260*200mm

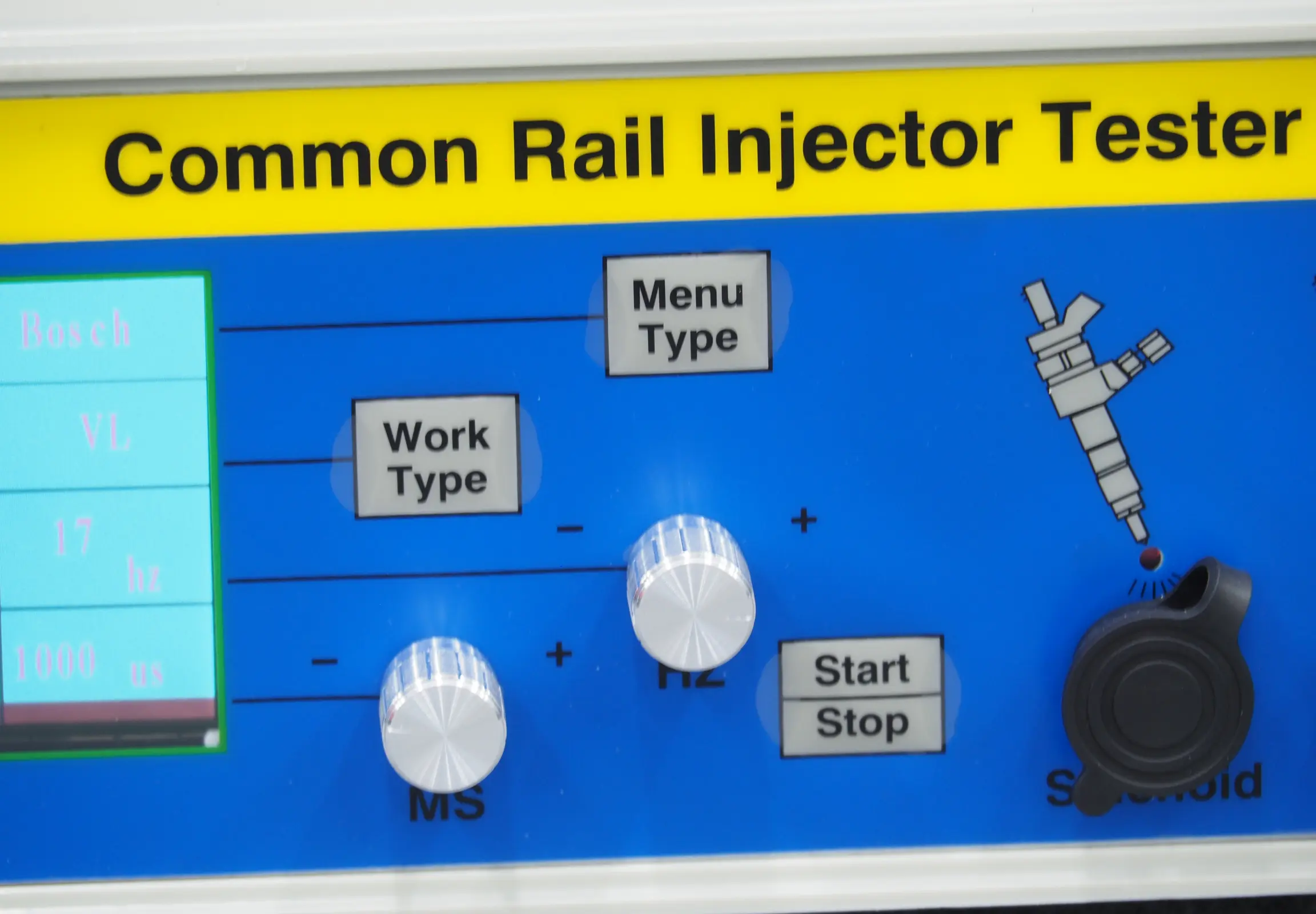

Adjustable Width:  100us - 6 mS

Adjustable  Frequency:  1-30HZ(Solenoid Injector)  1-20HZ(Piezo Injector)

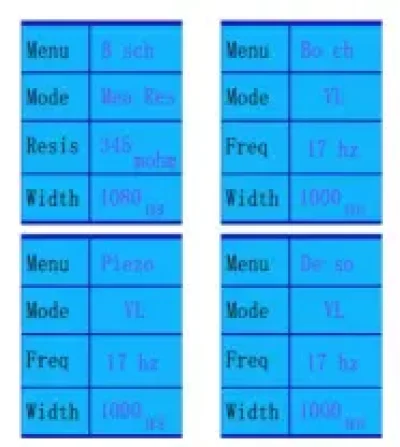

Other function :Measuring Solenoid injector impedance

Safeguard:  1,Protection fuse use in  Power In  2,Hardware protection circuit   3,Software protection,4,Out connector safety protection
